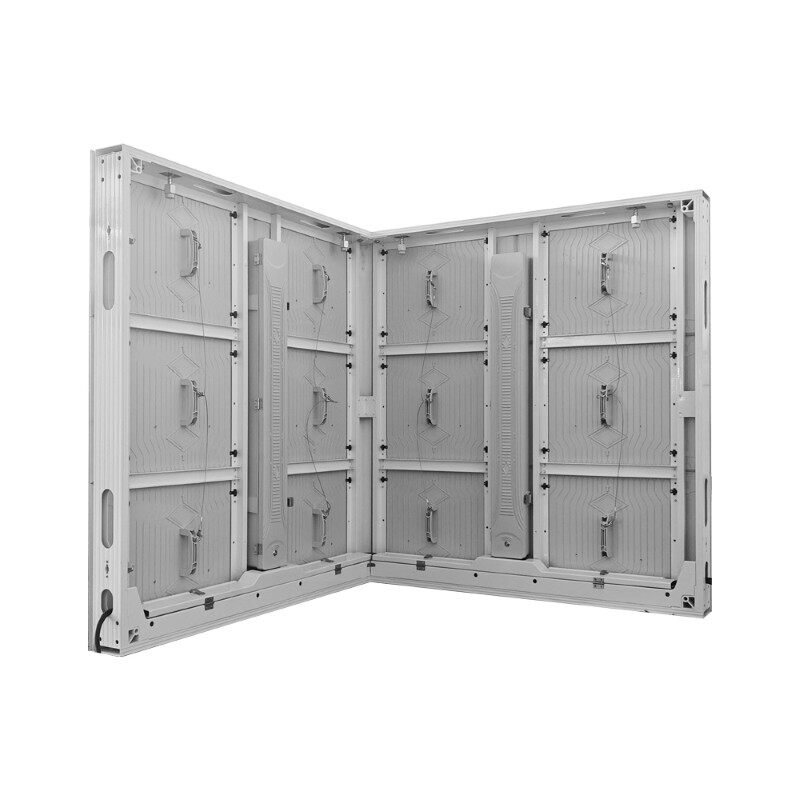

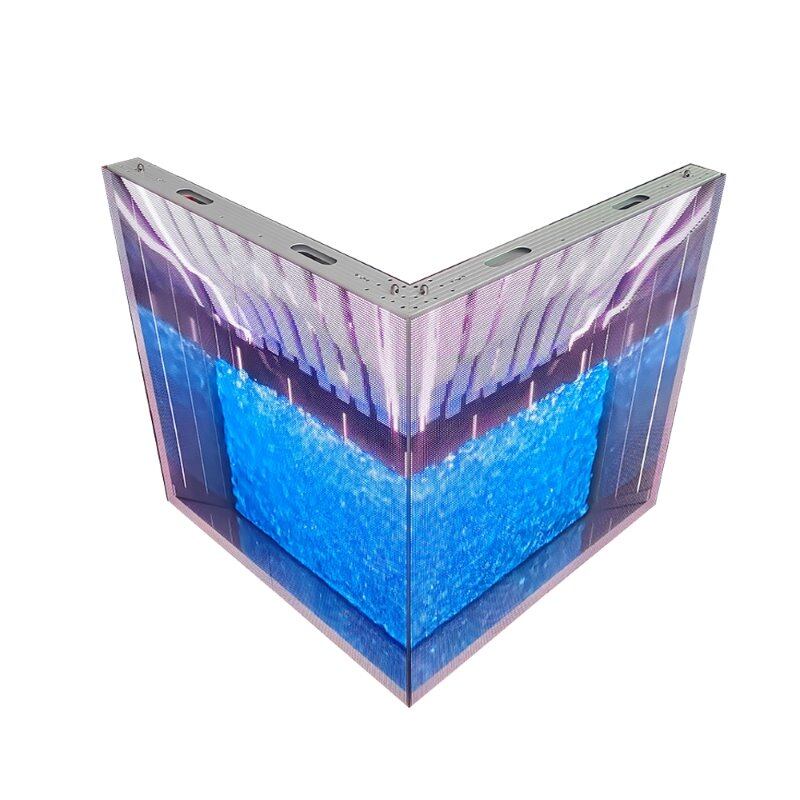

Hiki i kēia hōʻike LED curved 90-degree ke kūlou i ka ʻoki 90 e hana i nā pale makakū hoʻohiwahiwa. Ua kūpono loa ia i nā kihi hale hōʻikeʻike a i ʻole nā kihi o ke kahua, e mālama ana i ka lewa i ka wā e hoʻonui ana i ke kihi ʻike no ke kiʻi akaka mai kēlā me kēia kūlana. Me ka modular splicing, hili ʻo ia i nā paia me ka leʻaleʻa, e hāʻawi ana i kahi hopena ʻike nani a me ka hoʻololi maʻalahi. ʻO ke keʻena kihi paʻa e hōʻoia i ka paʻa a hiki ke hoʻokomo pono, kūpono ia no nā noi kihi immersive.
Huahana Huahana
|
'ikamu |
FC4.44 |
FC5.7 |
FC6.67 |
FC8 |
FC10 |
|
Hui Pika (SMD) |
1921 |
2727 |
2727 |
2727 |
2727 |
|
Piki Pika (mm) |
4.44 |
5.7 |
6.67 |
8 |
10 |
|
Hoʻoholo Module (W×H) |
10×108 |
8×56 |
6×72 |
5×60 |
4×32 |
|
Nui Module (mm) |
44.44×480 |
45.7×320 |
40×480 |
40×480 |
40×320 |
|
Kaumaha Module (kg) |
0.47 |
0.35 |
0.47 |
0.47 |
0.32 |
|
Ka nui/Kāpena (W×H) |
7×2 |
7×3 |
8×2 |
8×2 |
8×3 |
|
Hoʻoholo Kuhina (W×H) |
70×216 |
56×168 |
48×144 |
40×120 |
32×96 |
|
Nui o ke Kuhina (mm) |
311×960 |
320×960 |
320×960 |
320×960 |
320×960 |
|
Kaumaha o ke Kuhina (kg/cabinet) |
12 |
15.6 |
12 |
12 |
15.6 |
|
Mea Kuhina |
Aluminum |
Hao |
Aluminum |
Aluminum |
Hao |
|
Ka ʻAha Kuhina (dot/m²) |
50625 |
30625 |
22500 |
15625 |
10000 |
|
Ka helu IP |
IP66/IP54 |
||||
|
'Olino keokeo (nits) |
ʻOi aku a i ʻole like me 5500 |
ʻOi aku ma mua a i ʻole like me 7000 |
ʻOi aku ma mua a i ʻole like me 7000 |
ʻOi aku ma mua a i ʻole like me 7000 |
ʻOi aku ma mua a i ʻole like me 7000 |
|
Mea Hana kala (bit) |
16 |
||||
|
Mahana kala (K) |
6500-9000 |
||||
|
ʻO ka huina ʻike (H/V) |
140 degere / 120 degere |
||||
|
Wela waena kiko malamalama |
＜3% |
||||
|
Hoʻohui like ʻana o ka luminance |
ʻOi aku a i ʻole like me 97% |
||||
|
ʻano like ʻole Chromaticity |
Ma loko o ±0.003Cx, Cy |
||||
|
Laki like ʻole |
15000:1 |
||||
|
ʻO ka hoʻohana mana kiʻekiʻe (W/㎡) |
700 |
700 |
700 |
700 |
800 |
|
Hoʻohana mana maʻamau (W/㎡) |
235 |
235 |
235 |
235 |
268 |
|
Voltage Hookomo |
AC100~240V |
||||
|
Ka pinepine (Hz) |
50&60 |
||||
|
Ke kalaiwa IC |
1/9 |
1/7 |
1/6 |
1/3 |
1/2 |
|
Lakiō hou (Hz) |
3840 |
||||
|
Hana Hana |
Imua a me Hope |
||||
|
Ola (mau hola) |
100,000 |
||||
|
Ka Mahana Hana/Hūdī |
-40 degere -80 degere /10%RH-98%RH (Non Condensing) |
||||
|
Ka Mahana Waihona |
-20 degere -60 degere /10%RH-98%RH (Non Condensing) |
||||
Hōʻike hoʻokomo
I ka hoʻonohonoho ʻana i kāu hōʻike LED curved 90-degere, he mea hoʻohana -mea hoʻohana ka demo hoʻonohonoho: ʻO kona hoʻolālā modular e maʻalahi ka lawe ʻana i nā panela hoʻokahi, me nā kiʻi hoʻonohonoho arc pololei i kūkulu ʻia. ʻO ka hoʻonohonoho ʻana a me ka hoʻopili ʻana iā lākou kūpono loa, ʻaʻohe mea paʻakikī e pono ai-2 hiki i nā kānaka ke hōʻuluʻulu koke i ke kihi.
Hōʻike ka demo i ke ʻano o ka hoʻomaʻamaʻa ʻana-i nā kiʻi no ka arc 90-degere pololei, e hōʻoia ana i ka paʻa ma hope o ke kau ʻana. Ua kūpono ia i nā kihi o ka hale hōʻikeʻike a i ʻole nā pihi kahua, me nā hiʻohiʻona e neʻe mālie ana mai ka pololei a i ka curved, e maʻalahi ai i ka poʻe hoʻomaka ke hahai.
Palapala hōʻoia
Hōʻike ʻo JIUWLDS LED i ka palekana, i kākoʻo ʻia e nā palapala hōʻoia honua nui e hōʻike ana i nā palekana koʻikoʻi. Hoʻopaʻa loa ka palapala hōʻoia ROHS i 10 mau mea ʻino i loko o nā ʻāpana, e hoʻopau ana i nā pilikia ʻona ma ke kumu no ka pale ʻana i ke olakino mea hoʻohana -kūpono no nā mākeke pili kaiaola, palekana-. Hōʻoia ka FCC hōʻoia i ka hoʻohālikelike electromagnetic ikaika, pale i ka hoʻopili ʻana me nā mea hana ʻē aʻe e pale aku i nā pōʻino palekana huna, pono no ke komo ʻana o ʻAmelika ʻĀkau. Hoʻoikaika ka hōʻoia CE i ka hoʻokō ʻana i ke olakino olakino, palekana, a me nā kūlana kūlohelohe, e uhi ana i ka palekana uila a me nā palena radiation e kūkulu i kahi pale palekana paʻa no nā mākeke EU. Loaʻa ʻia ma o ka hoʻāʻo ʻana o nā ʻaoʻao ʻekolu, ʻo kēia mau palapala hōʻoia e hōʻoiaʻiʻo i ka palekana a puni, nā pale hoʻokomo haʻahaʻa, a me ka hilinaʻi i ka hoʻokō ʻana i nā lula palekana honua.
FAQ
Q1: He aha nā palapala hōʻoia e pono ai no nā pale waho?
A1: IP65 wai wai, CE / EMC, hōʻoia palekana uila, a me kahi hōʻike nānā ʻana i ka pollution kukui kūloko.
Q2: Ke hoʻopuka nei nā hōʻike LED i ka radiation nui?
A2: Hoʻokō nā huahana maoli i nā kūlana hoʻohālikelike electromagnetic (e like me FCC a me CE). He haʻahaʻa loa ko lākou pae radiation, ma lalo o nā paepae palekana, a ʻaʻohe pilikia i ke kino o ke kanaka.
P3: Pehea ka wikiwiki o kou manawa pane ma hope o -kūʻai?
A3: 1-hola pane mamao, a me 24-hola kākoʻo ma ka paena mai nā hui kūloko ma o 50 mau ʻāina.
